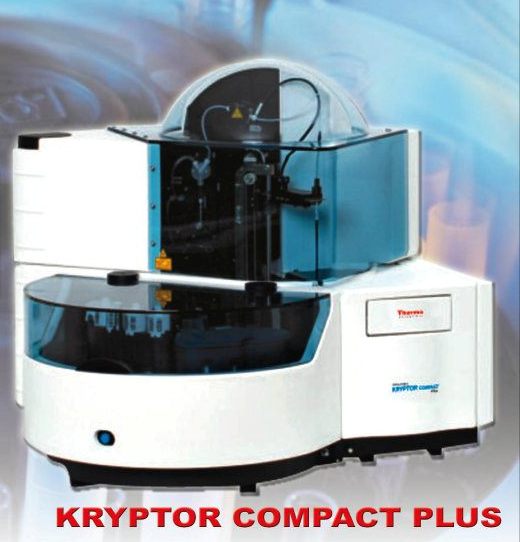

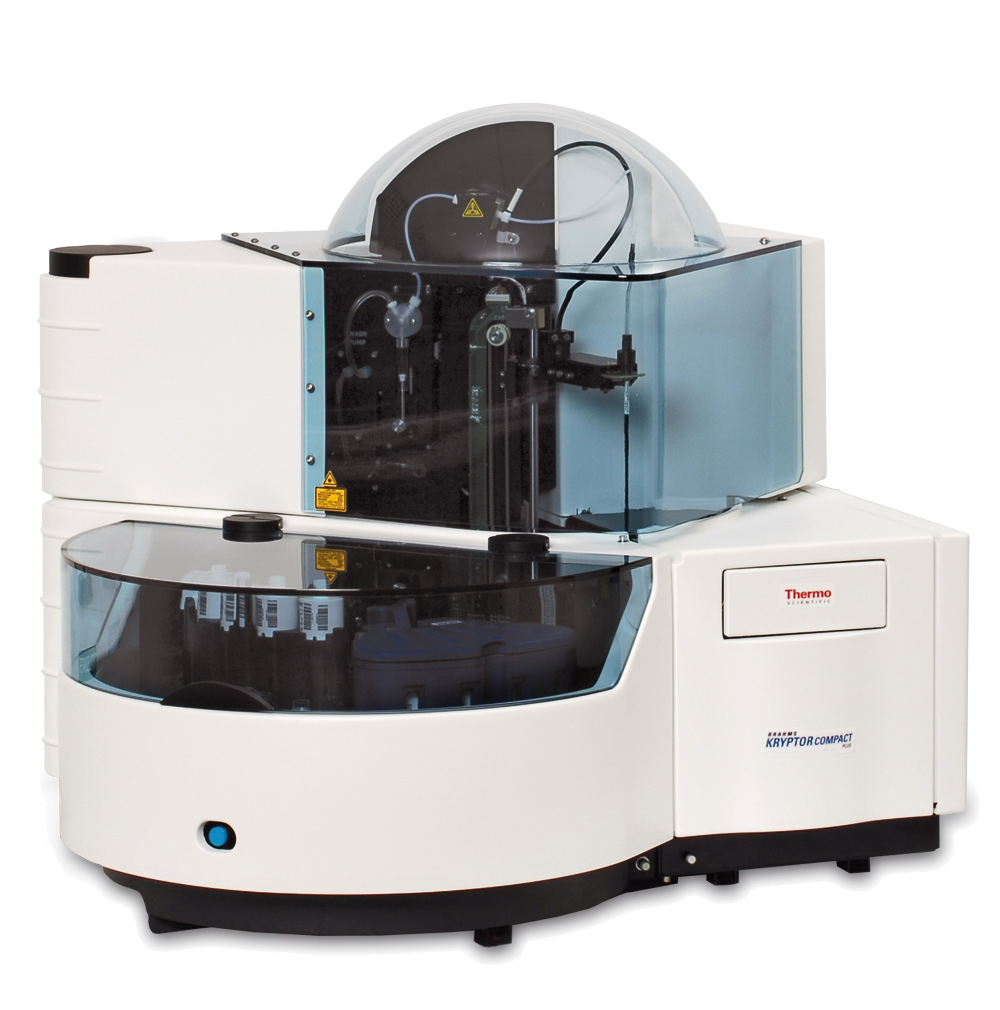

KRYPTOR Compact PLUS

SPESIFIKASI UMUM

Kecepatanuji

60 tes/jam

Kapasitas sampel

Hingga maksimum 64 sampel dalam 4 kaset

Metode Pengukuran

TRACE

Tabung uji specimen

11-17 mm

Identifikasi specimen

Barcode dan manual

Sensor

Barcode, level larutan dan penggumpalan

Volume sampel

10-70 µL

Mode operasi

Random access, batch, STAT

Kapasitas reagensia

Hingga 8 posisi

Identifikasi reagensia

Barcode, manual entry

Sensor reagensia

Sensor level

Kalibrasi

Kurva regresi setiap 1-2 minggu , 1 dan 2-point calibration

Jarum untuk distribusi specimen dan reagensia

Dipanaskan, dilapisi dengan Teflon, secara otomatis dibilas setiap uji

Suhu uji

30-40 ˚C

Kendali mutu

Levey-Jennings

Tipe sampel

Serum atau plasma

Waktu inkubasi

9 hingga 59 menit

LIS

Bidirectional

Dimensi (P x L x T);B

74 x 63 x 75 cm; 54 kg

Parameter

Infectious Diseases

B·R·A·H·M·S PCT sensitive

Procalcitonin

50 tests

824.050

Respiratory/Pulmonary/Cardiovascular Diseases



B·R·A·H·M·S CopeptinproAVP

Copeptin - C-terminal pro Arginine Vasopressin

50 tests

857.050

B·R·A·H·M·S MR-proANP

Midregional Pro-atrial Natriuretic Peptide

50 tests

819.050

B·R·A·H·M·S MR-proADM

Midregional Pro-Adrenomedullin

50 tests

829.050

Endocrinology and Metabolic Disorders



B·R·A·H·M·S anti-Tgn

Auto-antibodies to Thyroglobulin

75 tests

830.075

B·R·A·H·M·S anti-TPOn

Auto-antibodies to Thyroperoxidase

75 tests

852.075

B·R·A·H·M·S hTg sensitive
(with Recovery)

Human Thyroglobulin (sensitive)

75 tests

832.075

B·R·A·H·M·S TRAK human

Auto-antibodies to human Thyrotropin
(TSH) Receptor

50 tests

801.050

B·R·A·H·M·S Copeptin-proAVP

Copeptin - C-terminal pro Arginine Vasopressin

50 tests

857.050

Cancer Diseases



B·R·A·H·M·S AFP

Alpha-Fetoprotein

75 tests

816.075

B·R·A·H·M·S CA 15-3

Cancer Antigen 15-3

75 tests

808.075

B·R·A·H·M·S CA 19-9

Cancer Antigen 19-9

100 tests

807.100

B·R·A·H·M·S CA 125 II

Cancer Antigen 125

75 tests

805.075

B·R·A·H·M·S CEA

Carcinoembryonic Antigen

100 tests

817.100

B·R·A·H·M·S CgA II

Chromogranin A

50 tests

839.050

B·R·A·H·M·S CYFRA 21-1

Fragment of Cytokeratin-19

50 tests

811.050

B·R·A·H·M·S hCG+β

Human chorionic Gonadotropin
(including, beta subunit)

50 tests

841.050

B·R·A·H·M·S NSE

Neuron-specific Enolase

50 tests

821.050

B·R·A·H·M·S Prolactin

Prolactin

50 tests

824.050

B·R·A·H·M·S SCC

Squamous cell Carcinoma Antigen

50 tests

812.050

B·R·A·H·M·S hTg sensitive
(with Recovery)

Human Thyroglobulin (sensitive)

75 tests

832.075

B·R·A·H·M·S Total PSA

Prostate-specific Antigen (total)

100 tests

810.100

B·R·A·H·M·S Free PSA

Prostate-specific Antigen (free)

50 tests

867.050

B·R·A·H·M·S Osteocalcin

Osteocalcin

50 tests

835.050

Prenatal Screening



B·R·A·H·M·S AFP

Alpha-Fetoprotein

75 tests

818.075

B·R·A·H·M·S Free βhCG

Beta-subunit of human chorionic Gonadotropin

75 tests

809.075

B·R·A·H·M·S hCG+β

Human chorionic Gonadotropin
(including beta subunit)

50 tests

841.050

B·R·A·H·M·S PAPP-A

Pregnancy-associated Plasma Protein A

75 tests

866.075

B·R·A·H·M·S PlGF plus

Placental growth Factor

75 tests

859.075

B·R·A·H·M·S sFlt-1

Soluble fms-like Tyrosine Kinase 1

75 tests

845.075

B·R·A·H·M·S uE3

Unconjugated Estriol

75 tests

803.075
